Name: MF15 Gravitylines

Display Field: GRAVITYLINETYPE

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: Gravitylines for Sewer for the City of Murfreesboro, TN. The data is updated continually through the use of as-builts and GPS.

Service Item Id: c8f5fa1bae2046f786a86145f9da3aa2

Copyright Text: Karen Carr - GIS Analyst

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Supports Datum Transformation: true

Extent:

XMin: -9632249.251296736
YMin: 4256651.202854087
XMax: -9548769.844437772
YMax: 4292942.265755163
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: MATERIAL
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: CI
  Label: CAST IRON
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [63, 145, 158, 255]
  Width: 2
• Value: CIP
  Label: CIP
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [224, 247, 89, 255]
  Width: 2
• Value: DI
  Label: DUCTILE IRON
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 92, 230, 255]
  Width: 2
• Value: HDPE
  Label: HDPE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [227, 108, 84, 255]
  Width: 2
• Value: HOBAS
  Label: HOBAS FIBERGLASS
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [48, 51, 133, 255]
  Width: 2
• Value: OTHER
  Label: OTHER
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [132, 245, 181, 255]
  Width: 2
• Value: PVC
  Label: PVC
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [145, 143, 73, 255]
  Width: 2
• Value: RC
  Label: REINFORCED CONCRETE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [171, 72, 136, 255]
  Width: 2
• Value: SPL
  Label: SPIROLITE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [197, 0, 255, 255]
  Width: 2
• Value: UNKNOWN
  Label: UNKNOWN
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [47, 128, 83, 255]
  Width: 2
• Value: VC
  Label: VITRIFIED CLAY
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [230, 121, 13, 255]
  Width: 2
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FeatureID ( type: esriFieldTypeString, alias: Feature ID, length: 10 )
• OBJECTID ( type: esriFieldTypeOID, alias: Object ID )
• ProjectName ( type: esriFieldTypeString, alias: Project Name, length: 75 )
• ProjectNumber ( type: esriFieldTypeString, alias: Project Number, length: 10 )
• WorkOrder ( type: esriFieldTypeString, alias: Work Order, length: 10 )
• InstallDate ( type: esriFieldTypeDate, alias: Install Date, length: 8 )
• DIAMETER ( type: esriFieldTypeInteger, alias: Diameter , Coded Values: [0: UNKNOWN] , [4: 4] , [6: 6] , ...15 more... )
• MATERIAL ( type: esriFieldTypeString, alias: Material, length: 30 , Coded Values: [CI: CAST IRON] , [CIP: CIP] , [DI: DUCTILE IRON] , ...8 more... )
• GRADE ( type: esriFieldTypeDouble, alias: Grade )
• COMMENTS ( type: esriFieldTypeString, alias: Comments, length: 175 )
• TempBasin ( type: esriFieldTypeString, alias: Temp Basin, length: 25 )
• InspectorFile ( type: esriFieldTypeString, alias: Inspector File, length: 200 )
• InspectorFileDrawings ( type: esriFieldTypeString, alias: Inspector File Drawings, length: 200 )
• UpstreamMH ( type: esriFieldTypeString, alias: Upstream MH, length: 25 )
• RehabBasin ( type: esriFieldTypeString, alias: RehabBasin, length: 25 )
• PVCTYPE ( type: esriFieldTypeString, alias: PVC Type, length: 50 , Coded Values: [SDR26: SDR26] , [SDR35: SDR35] , [UNKNOWN: UNKNOWN] , ...1 more... )
• REHAB ( type: esriFieldTypeString, alias: Rehab, length: 10 , Coded Values: [YES: YES] , [NO: NO] , [UNKNOWN: UNKNOWN] )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• GRAVITYLINETYPE ( type: esriFieldTypeString, alias: Gravityline Type, length: 15 , Coded Values: [Abandoned: Abandoned] , [Existing: Existing] , [Proposed: Proposed] , ...2 more... )
• ProjectFile ( type: esriFieldTypeString, alias: Project File, length: 200 )
• ProjectFileDrawings ( type: esriFieldTypeString, alias: Project File Drawings, length: 200 )
• DownstreamMH ( type: esriFieldTypeString, alias: DownstreamMH, length: 25 )
• Hyperlink1 ( type: esriFieldTypeString, alias: Hyperlink1, length: 200 )
• SmokeTesting ( type: esriFieldTypeString, alias: SmokeTesting, length: 50 , Coded Values: [YES: YES] , [NO: NO] , [UNKNOWN: UNKNOWN] )
• PSR ( type: esriFieldTypeString, alias: Pipe Segment Reference, length: 25 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

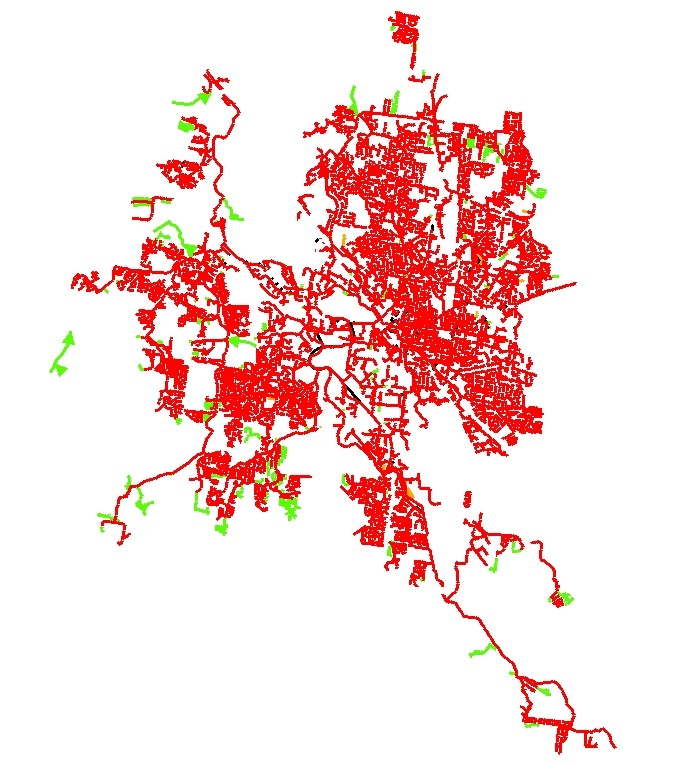

  Iteminfo   Thumbnail   Metadata
