View In:   ArcGIS Online Map Viewer

Name: Gravityline

Display Field: ProjectName

Type: Feature Layer

Geometry Type: esriGeometryPolyline

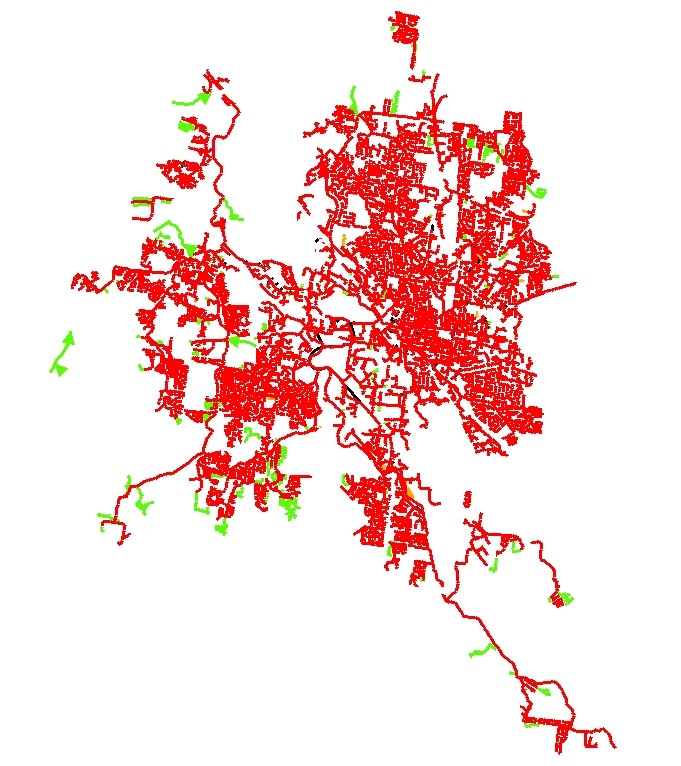

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Gravitylines for Sewer for the City of Murfreesboro, TN. The data is updated continually through the use of as-builts and GPS.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 0bdbdf7829654759881699d68d6cc887

Copyright Text: Karen Carr - GIS Analyst

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: -9632249.251296736
YMin: 4256651.202854087
XMax: -9548769.844437772
YMax: 4292942.265755163
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: REHAB
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: YES
  Label: YES
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [168, 0, 0, 255]
  Width: 2
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: REHAB

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: FID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• GRAVITYLINETYPE ( type: esriFieldTypeString, alias: Gravityline Type, editable: true, nullable: true, length: 15, defaultValue: null, modelName: GRAVITYLINETYPE , Coded Values: [Abandoned: Abandoned] , [Existing: Existing] , [Proposed: Proposed] , ...2 more... )
• ProjectName ( type: esriFieldTypeString, alias: Project Name, editable: true, nullable: true, length: 75, defaultValue: null, modelName: PROJECT_NAME )
• ProjectNumber ( type: esriFieldTypeString, alias: Project Number, editable: true, nullable: true, length: 10, defaultValue: null, modelName: PROJECT_NUMBER )
• WorkOrder ( type: esriFieldTypeString, alias: Work Order, editable: true, nullable: true, length: 10, defaultValue: null, modelName: SEWER_WORK_ORDER )
• InstallDate ( type: esriFieldTypeDate, alias: Install Date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: INSTALL_DATE )
• UpstreamMH ( type: esriFieldTypeString, alias: Upstream MH, editable: true, nullable: true, length: 25, defaultValue: null, modelName: UPSTREAM_MH )
• DownstreamMH ( type: esriFieldTypeString, alias: Downstream MH, editable: true, nullable: true, length: 25, defaultValue: null, modelName: DownstreamMH )
• DIAMETER ( type: esriFieldTypeInteger, alias: Diameter, editable: true, nullable: true, defaultValue: null, modelName: DIAMETER , Coded Values: [0: UNKNOWN] , [4: 4] , [6: 6] , ...15 more... )
• MATERIAL ( type: esriFieldTypeString, alias: Material, editable: true, nullable: true, length: 30, defaultValue: null, modelName: MATERIAL , Coded Values: [CI: CAST IRON] , [CIP: CIP] , [DI: DUCTILE IRON] , ...8 more... )
• PVCTYPE ( type: esriFieldTypeString, alias: PVC Type, editable: true, nullable: true, length: 50, defaultValue: null, modelName: PVCTYPE , Coded Values: [SDR26: SDR26] , [SDR35: SDR35] , [UNKNOWN: UNKNOWN] , ...1 more... )
• GRADE ( type: esriFieldTypeDouble, alias: Grade, editable: true, nullable: true, defaultValue: null, modelName: GRADE )
• Shape__Length ( type: esriFieldTypeDouble, alias: Length, editable: false, nullable: false, defaultValue: null, modelName: Shape.STLength() )
• COMMENTS ( type: esriFieldTypeString, alias: Comments, editable: true, nullable: true, length: 175, defaultValue: null, modelName: COMMENTS )
• TempBasin ( type: esriFieldTypeString, alias: Temp Basin, editable: true, nullable: true, length: 25, defaultValue: null, modelName: GENERIC1 )
• RehabBasin ( type: esriFieldTypeString, alias: Rehab Basin, editable: true, nullable: true, length: 25, defaultValue: null, modelName: REHAB_BASIN_ID )
• REHAB ( type: esriFieldTypeString, alias: Rehab, editable: true, nullable: true, length: 10, defaultValue: null, modelName: REHAB , Coded Values: [YES: YES] , [NO: NO] , [UNKNOWN: UNKNOWN] )
• SmokeTesting ( type: esriFieldTypeString, alias: SmokeTesting, editable: true, nullable: true, length: 50, defaultValue: null, modelName: SmokeTesting , Coded Values: [YES: YES] , [NO: NO] , [UNKNOWN: UNKNOWN] )
• created_user ( type: esriFieldTypeString, alias: created_user, editable: false, nullable: true, length: 255, defaultValue: null, modelName: created_user )
• created_date ( type: esriFieldTypeDate, alias: created_date, editable: false, nullable: true, length: 8, defaultValue: null, modelName: created_date )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, editable: false, nullable: true, length: 255, defaultValue: null, modelName: last_edited_user )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, editable: false, nullable: true, length: 8, defaultValue: null, modelName: last_edited_date )
• PSR ( type: esriFieldTypeString, alias: Pipe Segment Reference, editable: true, nullable: true, length: 25, defaultValue: null, modelName: PSR )
• FeatureID ( type: esriFieldTypeString, alias: Feature ID, editable: true, nullable: true, length: 10, defaultValue: null, modelName: FeatureID )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, editable: false, nullable: false, length: 38, defaultValue: null, modelName: GlobalID )

Types:

ID: YES
Name: YES
Domains:
• GRAVITYLINETYPE:
  Inherited
• DIAMETER:
  Inherited
• MATERIAL:
  Inherited
• PVCTYPE:
  Inherited
• REHAB:
  Inherited
• SmokeTesting:
  Inherited
Templates:
• Name: YES
  Description:
  Prototype:
  RehabBasin: null
  FeatureID: null
  GRAVITYLINETYPE: null
  ProjectName: null
  ProjectNumber: null
  WorkOrder: null
  InstallDate: null
  UpstreamMH: null
  DownstreamMH: null
  DIAMETER: null
  MATERIAL: null
  PVCTYPE: null
  GRADE: null
  PSR: null
  COMMENTS: null
  TempBasin: null
  REHAB: YES
  SmokeTesting: null

  Drawing Tool: esriFeatureEditToolLine

---

Capabilities: Query,Create,Update,Delete,Uploads,Editing

Sync Can Return Changes: true

Is Data Versioned: true

Supports Rollback On Failure: false

Supports ApplyEdits With Global Ids: false

Edit Fields Info:

• Creation Date Field: created_date
• Creator Field: created_user
• Edit Date Field: last_edited_date
• Editor Field: last_edited_user

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Apply Edits   Add Features   Update Features   Delete Features   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
